Updating latitude and longitude on UHP-100


Finding the IP Address of the modem


1. Connect a Laptop/PC to the modem using an Ethernet cable.

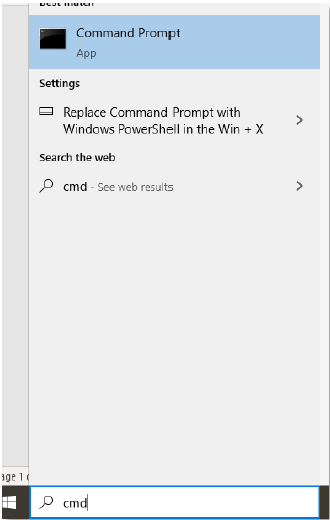

2. Type "CMD" into the bottom search bar and open "Command Prompt"

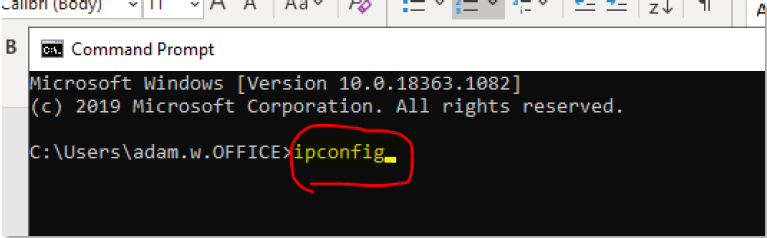

3. Type in "ipconfig" and press "Enter"

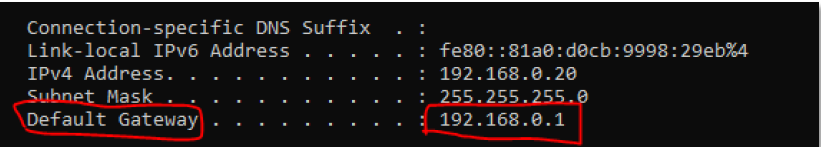

4. Search for the gateway IP address (this is the IP address assigned to the modem)




Updating the latitude and longitude in the modem

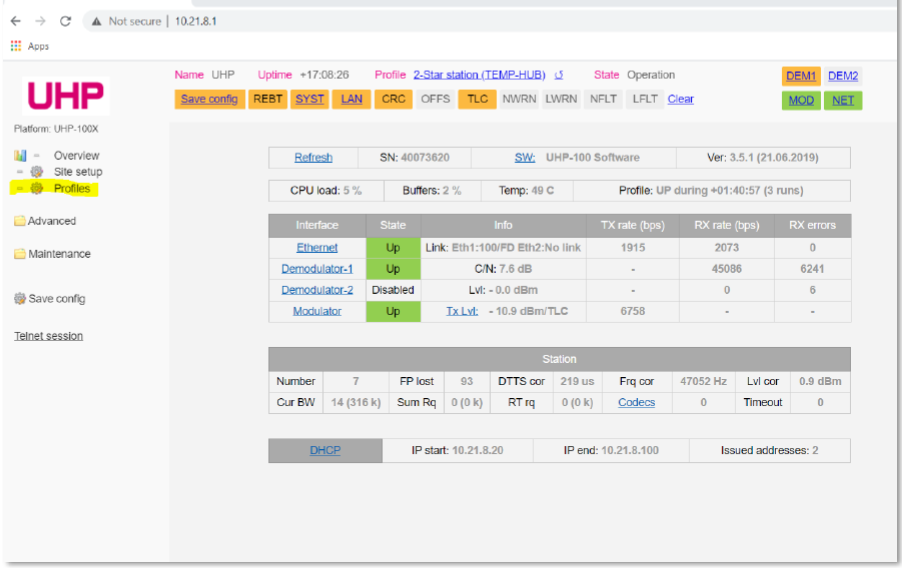

1. Open a web browser and type in the IP address of the modem.

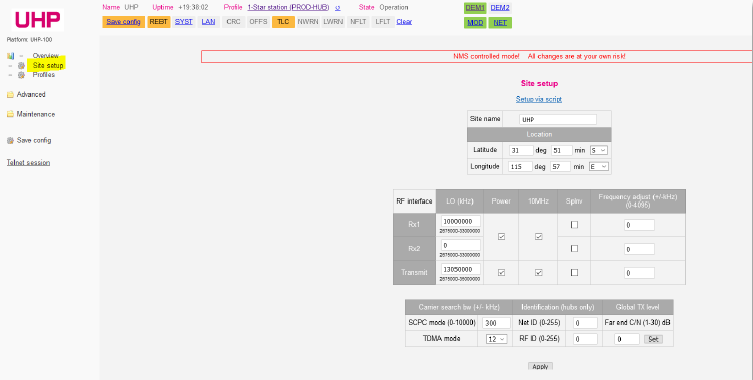

2. Click “Site Setup”

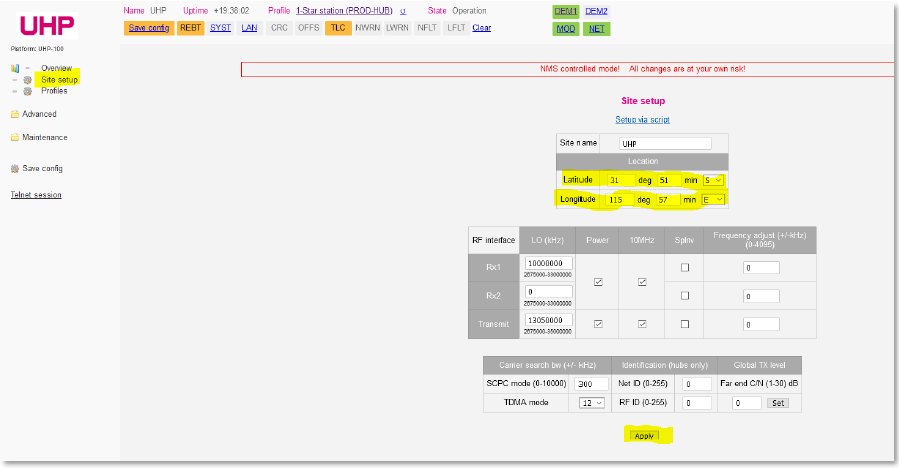

3. Enter the LAT/LONG for the new site

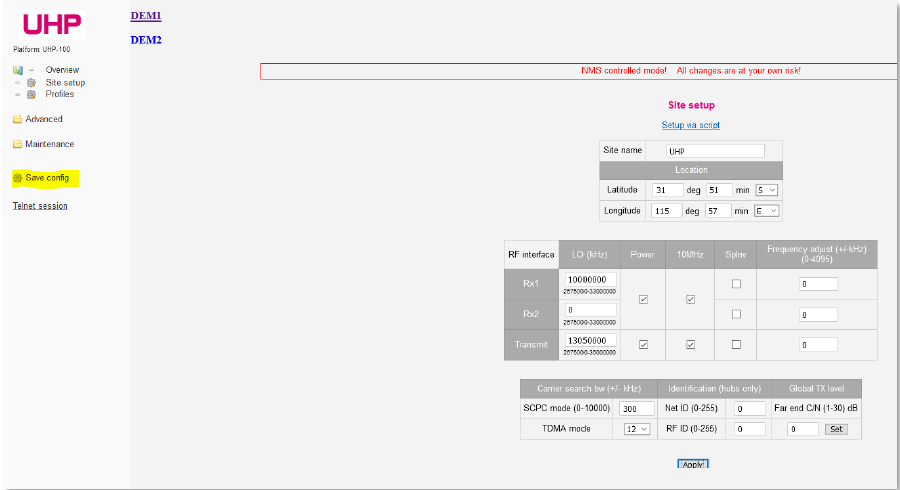

4. Click “Save Config”

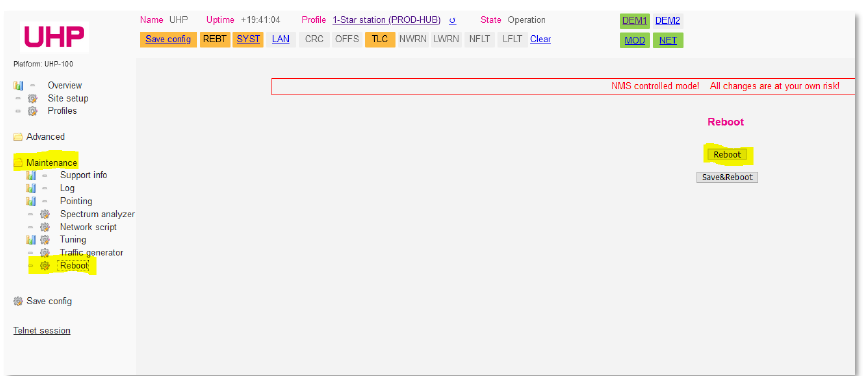

5. Click “Maintenance” and then “Reboot” and finally click the “Reboot” button. Modem will reboot with new LAT/Long.
